Vacuum Flow ZHVProduct Category:Vacuum Flow

Product Introduction:
·By supplying compressed air, blowing or creating a vacuum can be carried out·Blowing: Maximum 6820L/min (ANR) * 1·Vacuum: Maximum 5270L/min (ANR) * 1※ 1 Supply pressure: at 0.5MPa, the value of ZHV40·The blowing/vacuum flow rate can be control
Call the ordering phone number Back

Product Introduction

    ·By supplying compressed air, blowing or creating a vacuum can be carried out

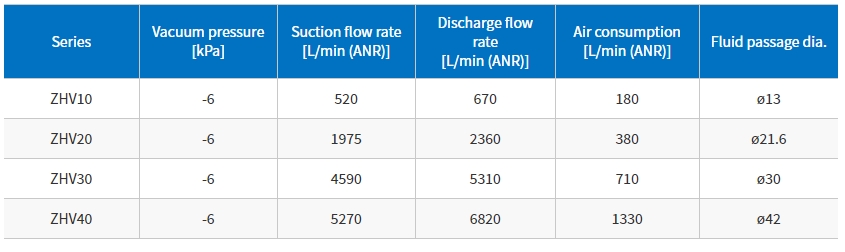

    ·Blowing: Maximum 6820L/min (ANR) * 1
    ·Vacuum: Maximum 5270L/min (ANR) * 1
    ※ 1 Supply pressure: at 0.5MPa, the value of ZHV40
    ·The blowing/vacuum flow rate can be controlled by adjusting the nozzle position
    ·Can generate a vacuum flow rate of more than 3 times the gas supply volume
    ·Can generate a blowing flow rate of more than 4 times the gas supply volume
    ·Weight: Reduce by up to 50% (209g ← 417g) * 2
    ※ 2 ZHV20, compared to previous products (ZH20-X185)
    ·Capacity: Reduce by up to 50% (17000mm3 ← 34000mm3) * 3
    ※ 3 ZHV10, compared to previous products (ZH10-X185)
    ·Compared to the previous product (ZH-X185), the installation dimensions, port connection method, and fluid diameter can be interchanged
