Product Introduction

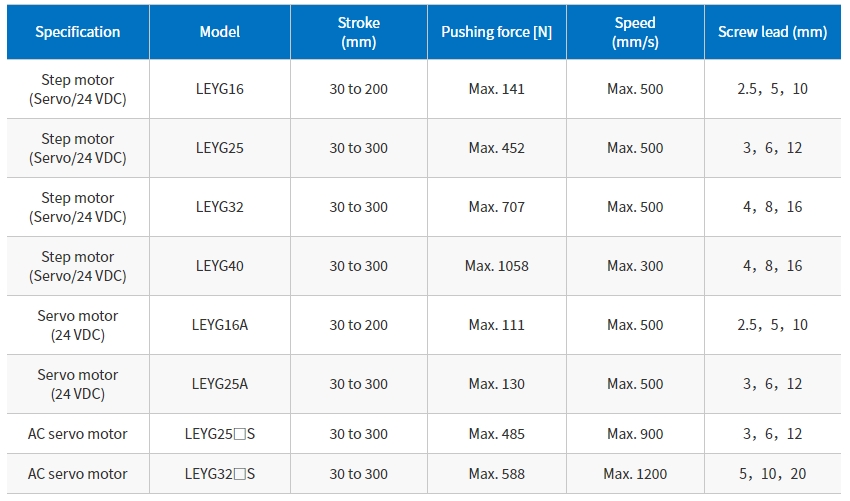

- LEYG series stepper motor (with encoder DC24V) servo motor (DC24V)
·Compact integration of guide rods to achieve resistance to lateral loads and high-precision anti rotation
·Lateral load at the end of the pole: 5 times (compared to the output pole type, size 25, and 100 strokes)
·Corresponding to sliding bearings and ball guide bearings
Can correspond to torque loads and limiters (sliding bearings)
·Speed control and positioning: up to 64 points
·Switchable push control
Can maintain the state of the rod pushing the workpiece
·Repetitive positioning accuracy: below ± 0.02mm
Ley series AC servo motor
·High output motor (100W/200W)
·Improved high-speed handling capability
·Corresponding to high acceleration and deceleration (5000mm/S2)
·Pulse input type
·Equipped with an absolute incremental encoder
·Do you have motor specifications available? Click here to view details
·Corresponding controller/driver: JXC □ LEC □
