Electric Actuator/Rod Type, In-line Motor Type LEY□DProduct Category:Rod Type/Guide Rod Type

Product Introduction:
LEY series stepper motor (with encoder DC24V) servo motor (DC24V)·Corresponding to long travel: up to 500mm·3 direct installation directions, 3 types of support installation·Can install magnetic switch·Speed control and positioning: up to 64 poin
Call the ordering phone number Back

Product Introduction

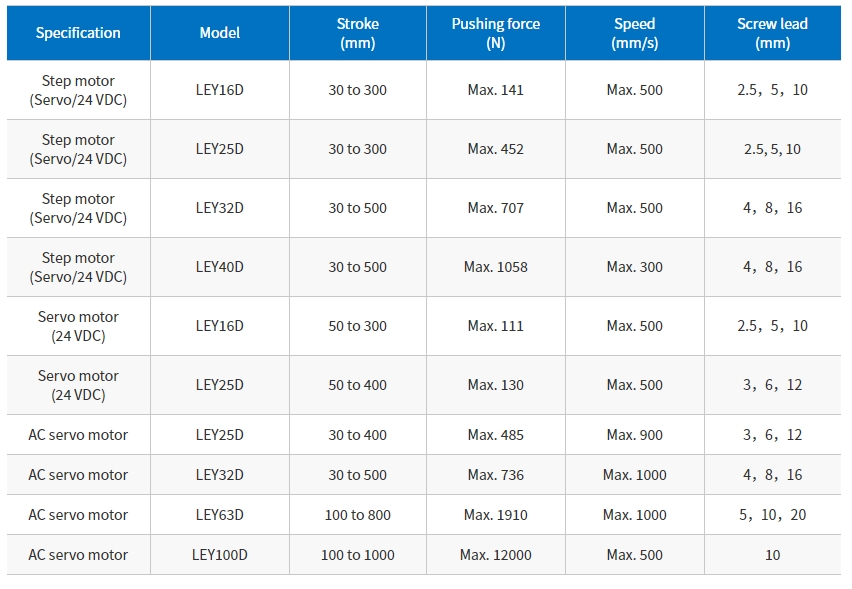

    LEY series stepper motor (with encoder DC24V) servo motor (DC24V)
    ·Corresponding to long travel: up to 500mm
    ·3 direct installation directions, 3 types of support installation
    ·Can install magnetic switch
    ·Speed control and positioning: up to 64 points
    ·Switchable push control
    Can maintain the state of the rod pushing the workpiece
    ·Repetitive positioning accuracy: below ± 0.02mm

    Ley series AC servo motor
    ·High output motor (100W/200W/400W)
    ·Improved high-speed handling capability
    ·Corresponding to high acceleration and deceleration (5000mm/S2)
    ·Pulse input type
    ·Equipped with an absolute incremental encoder
    ·Repetitive positioning accuracy: below ± 0.02mm
    ·Do you have motor specifications available? Click here to view details
    ·Corresponding controller/driver: JXC □ LEC □
