Electric Actuator/Slider Type, Belt Drive LEFBProduct Category:slider Type

Product Introduction:
LEFB series stepper motor (with encoder DC24V) servo motor (DC24V)·Maximum travel: 2000mm.·Maximum speed: 2000mm/s.·Repetitive positioning accuracy: ± 0.08mm.LEFB series AC servo motor·Maximum speed: 2000mm/s.·Maximum travel: 3000mm.·Maximum a
Call the ordering phone number Back

Product Introduction

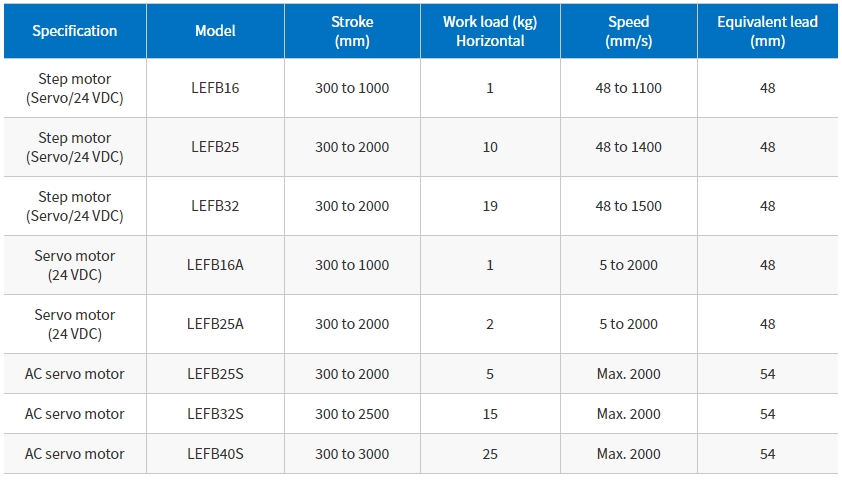

    LEFB series stepper motor (with encoder DC24V) servo motor (DC24V)
    ·Maximum travel: 2000mm.
    ·Maximum speed: 2000mm/s.
    ·Repetitive positioning accuracy: ± 0.08mm.

    LEFB series AC servo motor
    ·Maximum speed: 2000mm/s.
    ·Maximum travel: 3000mm.
    ·Maximum acceleration and deceleration (20000mm/S2).
    ·Pulse input type/with absolute incremental encoder.
    ·Repetitive positioning accuracy: ± 0.06mm.
    ·Whether there are motor specifications or not, click here to view details

    ·Corresponding controller/driver: JXC □ LEC □
