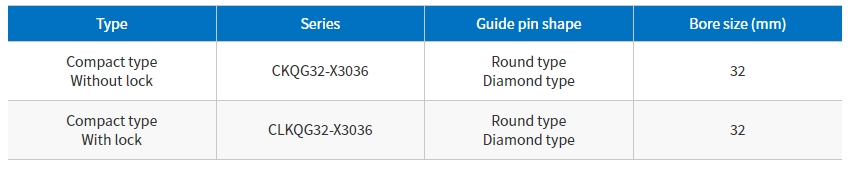

Product Introduction

·Lightweight: Weight reduced by 41% (900g → 530g)
·Small size
Total length: shortened by 41.5mm (183mm → 141.5mm)
Main body width: shortened by 4mm (50mm → 46mm)
·Equipped with a locking mechanism to prevent the workpiece from falling during emergency stop
·The shape of the guide pin can be used for workpieces with apertures ranging from ø 8 to ø 20
·The arm is easy to replace
