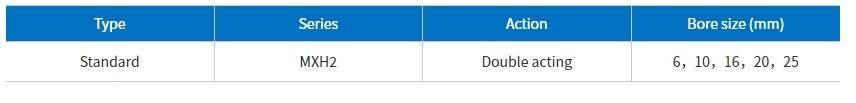

Compact Slide MXH2Product Category:Table Cylinders

Product Introduction:
・Size ø25 have been added. Same width as size ø20 Allowable moment: Max. 1.4 times greater than that of size ø20・Improved linear guide rigidity reduces the amount of table displacement by 48% Displacement due to a force act
Call the ordering phone number Back

Product Introduction

    ・Size ø25 have been added.
     Same width as size ø20
     Allowable moment: Max. 1.4 times greater than that of size ø20
    ・Improved linear guide rigidity reduces the amount of table displacement
     by 48%
     Displacement due to a force acting in the pitch direction: 48% reduction
     (0.31 mm→0.16 mm)
     Displacement due to a force acting in the yaw direction: 63% reduction
     (0.24 mm→0.09 mm)
     Displacement due to a force acting in the roll direction: 90% reduction
     (0.06 mm→0.006 mm)
    ・Max. standard stroke: 150 mm (For ø20, ø25)
    ・Weight: Max. 6% reduction (194 g→182 g)
    ・Dimensions for mounting and length are equivalent to the existing MXH

     series.
