Your location:Home >>Products >>SMC brand >>Directional Control Valves >>Finger Valve/HandValves/Residual Relief 3 PortValve
Product Introduction
·Space saving and improved operability (vertical) lever type 5-way valve
·Weight reduction of up to 45%
※When comparing VHL21 □ D-02 □ with VH210- □ 02 □
·Reduce the occupied area by 58%
VHL210D 3216.5mm2 ⬅ VH20□ 7750mm2
·The internal height of the panel installation has been reduced by 18.6mm
Occasions for panel installation
※When comparing VHL210D with existing product VH20 □
·Traffic increased by 73%
※When comparing VHL211 □ -02 □ with VH210- □ 02 □ (flow characteristics 1 → 4/2 (P → A/B))

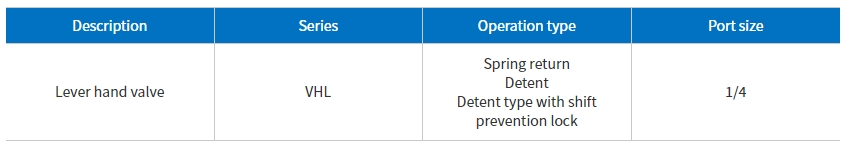

·Three operation modes
·Weight reduction of up to 45%
※When comparing VHL21 □ D-02 □ with VH210- □ 02 □
·Reduce the occupied area by 58%
VHL210D 3216.5mm2 ⬅ VH20□ 7750mm2
·The internal height of the panel installation has been reduced by 18.6mm
Occasions for panel installation
※When comparing VHL210D with existing product VH20 □
·Traffic increased by 73%
※When comparing VHL211 □ -02 □ with VH210- □ 02 □ (flow characteristics 1 → 4/2 (P → A/B))
·Three operation modes
