Product Introduction

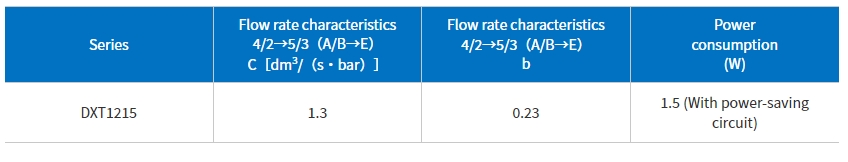

·High speed response: ON 2.5ms OFF 3ms
·High flow rate: 330 ※ L/min (ANR)
·When the primary side (inlet side) is 0.6MPa and the pressure difference is 0.1MPa
·Protection level: IP67
·Power saving: 1.5W (with power-saving circuit)
·You can choose between 3 or 5 channels
※ 3-way is a customized specification (- X1)
Compact
Total length: 91.5mm, width: 16mm, height: 34mm
