Product Introduction
- ·Vacuum -100kPa~can be used.
·Main body shape: A total of 51 types.
·Thread material/surface treatment (with or without): 2 types.
·Optional surface treatment: brass (uncoated), brass+electroless nickel plating.
·Suitable for pipe outer diameter
·Circular
Metric system: ø2, ø3.2, ø4, ø6, ø8, ø10, ø12, ø16
Imperial system: ø 1/8 '', ø5/32'', ø3/16'', ø1/4'', ø5/16'', ø3/8'', ø1/2''
Elliptical shape
Metric: ø 3.2, ø4, ø6
Imperial system: ø1/8'', ø5/32'', ø3/16''
Connecting thread
·Metric system: M3, M5, M6
R, Rc ：1/8, 1/4, 3/8, 1/2
G：1/8, 1/4, 3/8, 1/2
NPT：10-32UNF, 1/16, 1/8, 1/4, 3/8, 1/2
Uni：1/8, 1/4, 3/8, 1/2
·Sealing method
Sealing agent/gasket sealing
Sealing element sealing
Sealing gasket (Uni thread)

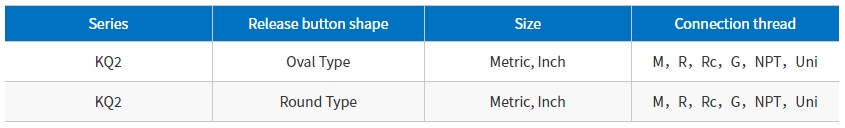

The original KJ/KQ2 has ceased production and has now been changed to the new KQ2.
No grease specifications (- X17, - X29, - X39), rubber material FKM specifications (- X34, - X94) are still available
