Air Preparation FiltersSEBA

menuproductsPRODUCT DISPLAY

Your location:Home >>Products >>SMC brand >>Air Preparation Equipment >>Air Preparation Filters

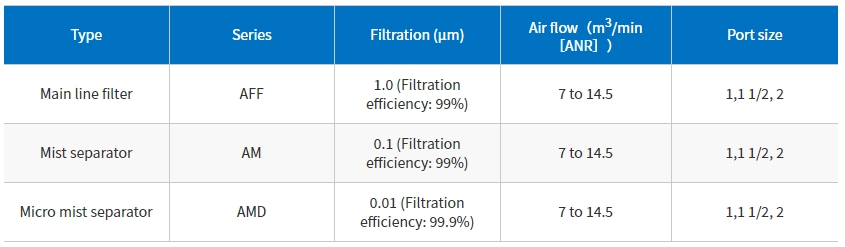

Main Line Filter AFF Mist Separator AM Micro Mist Separator AMD Product Category:Air Preparation Filters

Product Introduction:
·Compressed air cleanliness level: ISO8573·Due to reduced pressure drop and increased air handling capacity, it is more energy-efficientAir handling capacity: 14.5m3/min (ANR) increased by up to 20% compared to beforePressure drop: below 5kPa·Ligh
Call the ordering phone number Back

Product Introduction

    ·Compressed air cleanliness level: ISO8573
    ·Due to reduced pressure drop and increased air handling capacity, it is more energy-efficient
    Air handling capacity: 14.5m3/min (ANR) increased by up to 20% compared to before
    Pressure drop: below 5kPa
    ·Lightweight: up to 52% reduction (10.5kg → 5.0kg)
    Adopting a thinner stainless steel cup body to achieve lightweighting
    ·Save space and reduce working hours
    The main pipeline filter AFF series can filter out liquid and solid impurities without the need for a water droplet separator (AMG series), saving space and reducing piping time.
    ·The filter element is easier to replace
    There is a mechanism to prevent the cup from falling off
